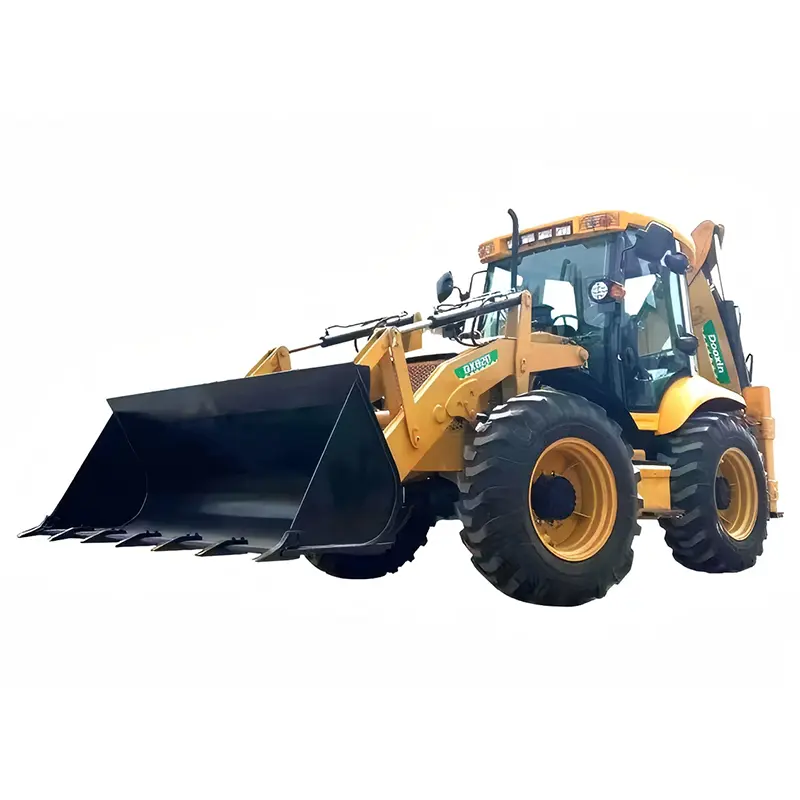

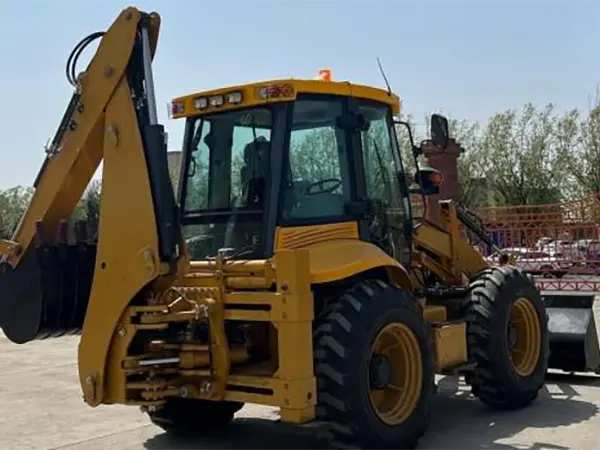

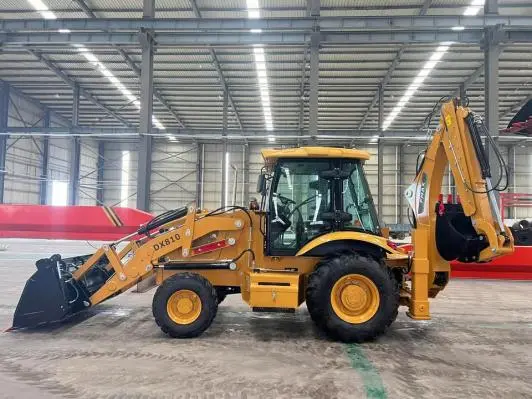

The DX820 articulated 10.5-ton backhoe loader is a type of construction machinery equipment used for excavating, loading and transporting various materials. The articulated backhoe loader has good mobility. This design also helps to enhance the stability of the backhoe loader.

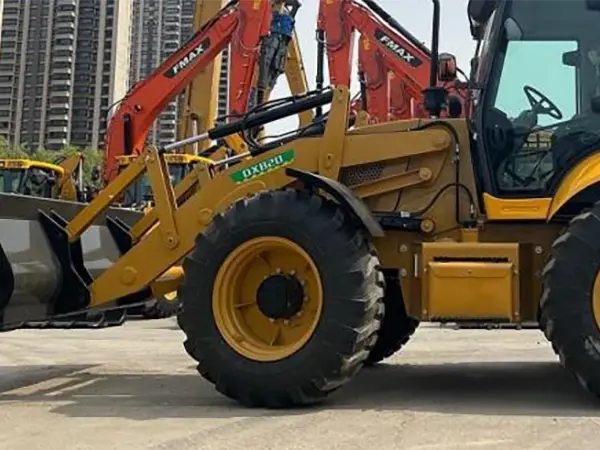

Increase Traction
The larger rear wheels increase the contact area with the ground, enhancing traction, especially when working on soft or uneven surfaces. Provide better support when turning and prevent skidding. Smaller front wheel can reduce rolling resistance, flexible steering. It provides greater maneuverability on flat surfaces.

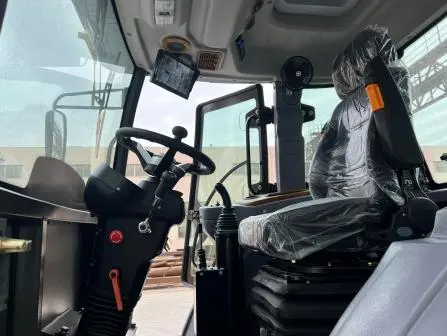

Air Damping Seat
This 10.5 ton backhoe loader is equipped with an air-damping adjustable seat. The seat position can be adjusted forward, backward, up and down. And the shock absorption effect is extremely excellent. It can adapt to many different working conditions and harsh road conditions.
Transmission System
DX820 10.5 ton 3 points of backhoe loader transmission system using mature and reliable components, can handle big load, to ensure the safety in the process of operation. The DX820 linked backhoe loader has a high safety factor and can operate smoothly even under extreme working conditions.

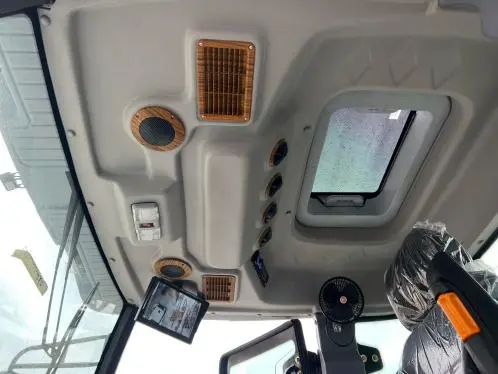

Upgraded Cab
The multi-functional cab is equipped with a skylight, which can provide better ventilation during operation. Compatible with various weather conditions. Moreover, the assembly monitoring can provide real-time viewing of the working conditions at the front and back, ensuring no blind spots in the field of vision. Driving with air conditioning is more comfortable.

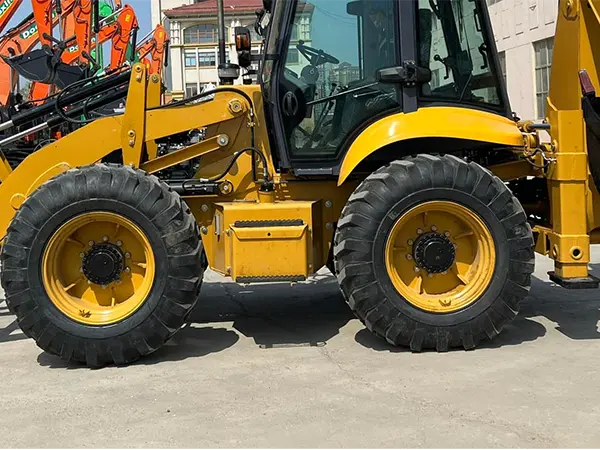

Tire
This 10.5 ton backhoe loader is equipped with large-patterned tires with wider treads. This makes the vehicle's grip performance more stable and prevents slippage during operation. And it is made of multi-layer nylon material. Driving on uneven road conditions can also significantly reduce the risk of a tire burst.
Model
DX820
Overall dimension
6450×2500×3120mm
Operating weight
10050KG
Rated load
2500KG
Rated bucket capacity
1.2m³
Rated digging bucket capacity
0.3m³
Max.Digging force
51KN
Turning radius
5750mm
Engine model
YC4A105Z-T20
Rated power
75KW
Rated speed
2000r/min
Gearbox
SHANMON
Axle
SHANMON
Gear shift
4 forward, 4 reverse
Pump
Jinan Quancheng
Valve
Jining Eaton
Max.Dumping height
3050mm
Dumping distance
870mm
Max.Digging depth
3820mm
Max.Loading height
3740mm
Tire size
16.9-28

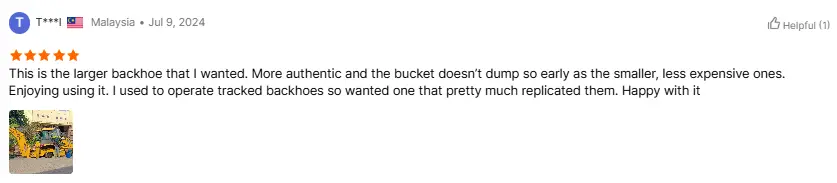

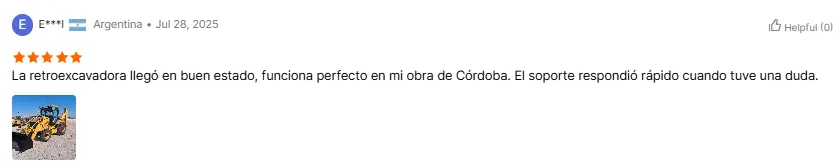

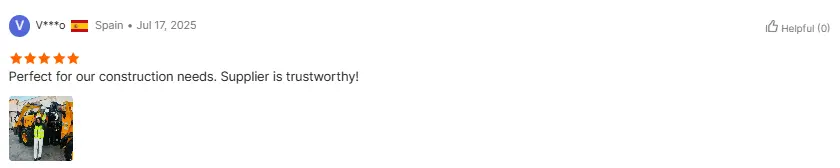

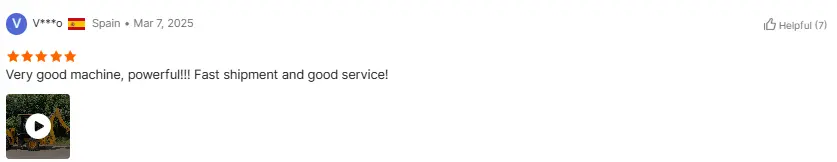

Review
FAQS
Q: Which is more practical, a backhoe loader or an excavator?
A: Backhoe loaders have a wider range of applications than excavators and can perform more tasks well. Meanwhile, they have a front bucket that can carry out the work of excavators.
Q: What services will your company provide for this machine?
A: Yes! We will test, inspect, repair, maintain and clean the backhoe loader before delivery.
Q: Do you support customization or OEM services?
A: Yes, we offer customized services to meet specific customer requirements. Including: - Custom design; OEM/ODM services; Color customization, etc.
